The Mountain Surfer’s Choice.
The Mark4 7-Inch Combo is a complete power system and frame kit designed for pilots looking to step into long-range FPV. By combining the proven geometry of the Mark4 frame with efficient low-KV motors and a robust electronics stack, this kit provides everything you need to build a stable, long-endurance quadcopter.
Why choose this combo?
-
Proven Geometry: The Mark4 295mm frame is an industry standard for a reason. Its H-shape design (Squashed X) offers plenty of room for electronics while keeping the props out of view. With 5mm thick arms, it is rigid enough to handle the torque of 7-inch props without vibration.
-
Efficient Propulsion: The included 2807 / 2806.5 1300KV motors are the “sweet spot” for 6S long-range cruising. They provide enough torque to carry a GoPro while maintaining high efficiency for longer flight times.
-
Reliable Power Stack: The F405 Flight Controller paired with a 60A 4-in-1 ESC ensures smooth power delivery. The ESC features an EMI shielding shell and onboard capacitors to filter noise, giving you cleaner video and safer flights.
Key Features:
-
Long Range Ready: optimized for 6S LiPo or Li-Ion batteries.
-
Durable Build: Full 3K Carbon Fiber with 5mm arms and reinforced plates.
-
Smooth Video: Stable frame resonance and filtered power reduce “jello” in your HD footage.
-
Complete Power Train: No need to guess which motors fit the ESC; we’ve matched them for you.
Technical Specifications

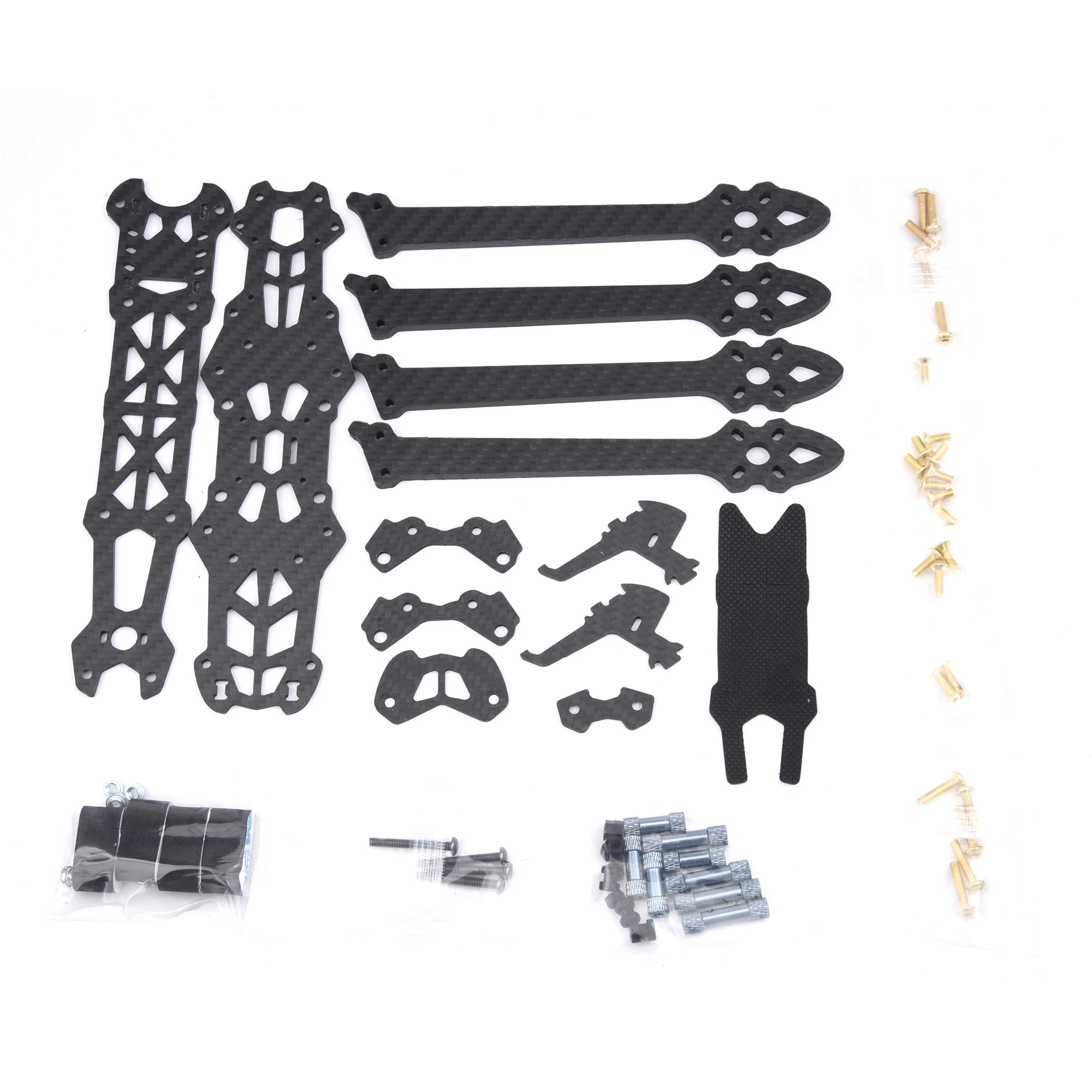

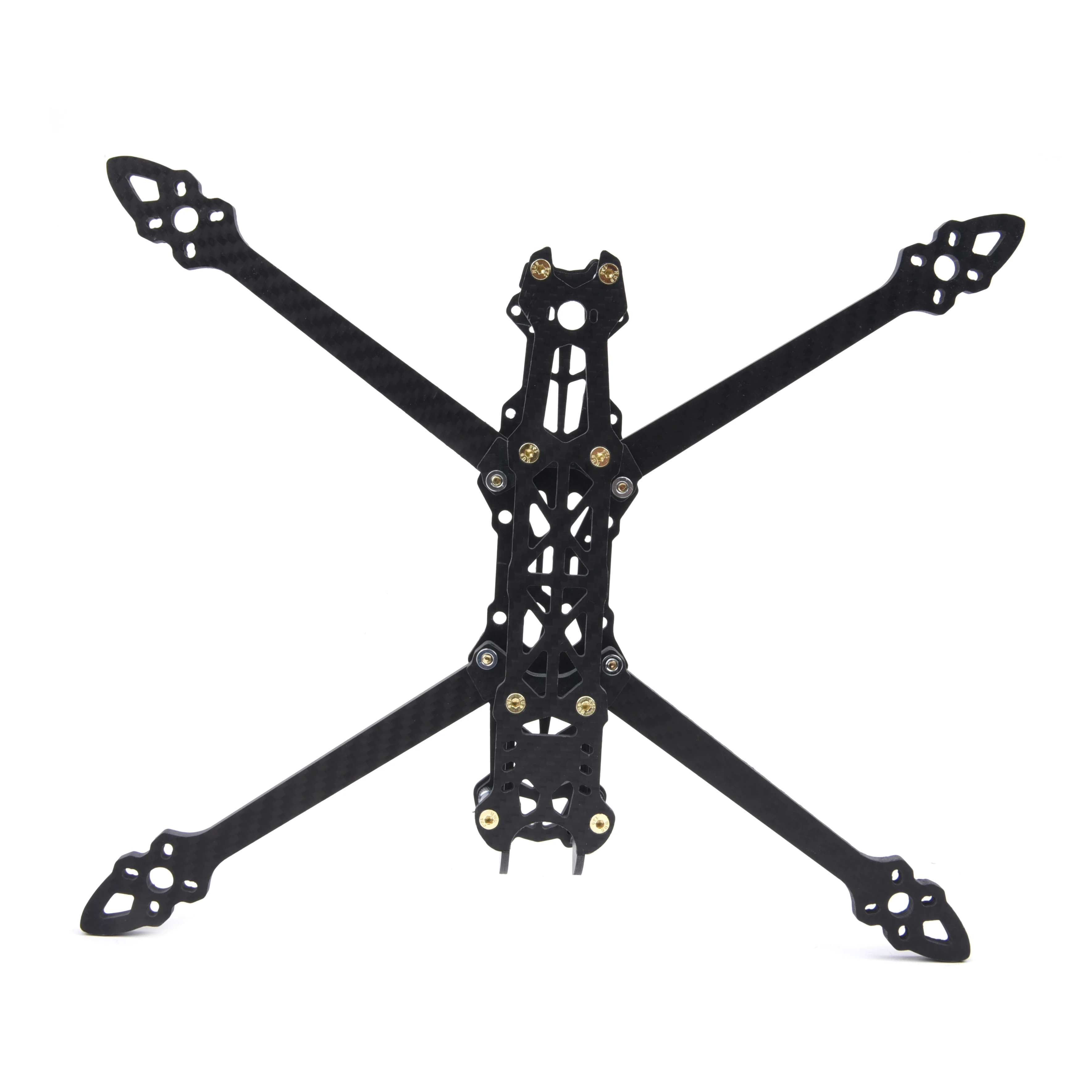

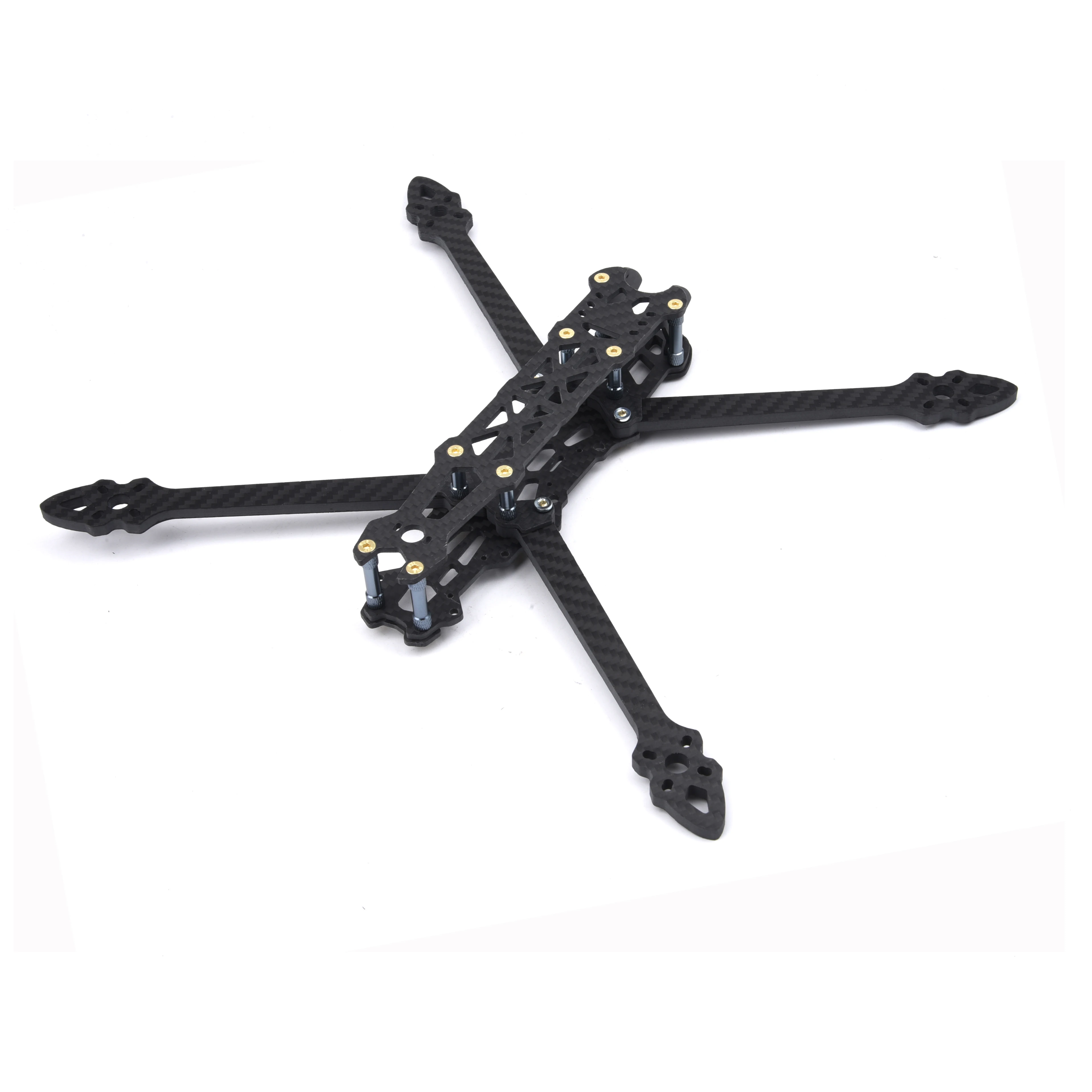

1. Mark4 7-Inch Frame
-
Wheelbase: 295mm
-
Arm Thickness: 5.0mm
-
Top/Bottom/Side Plates: 2.5mm
-
Weight: Approx. 121g
-
Camera Mount: 19mm (Micro Size)
-
Dimensions: 193mm x 223mm

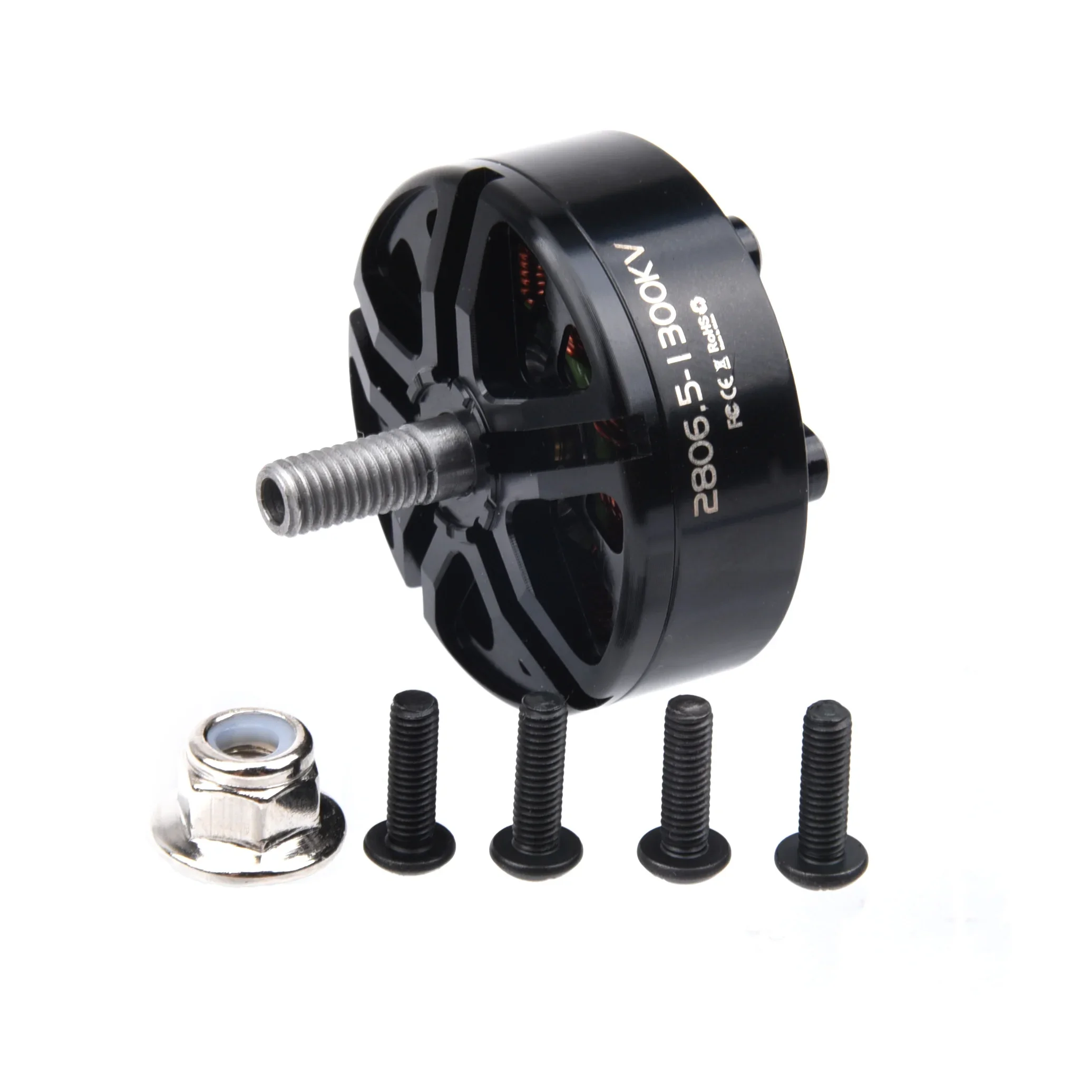

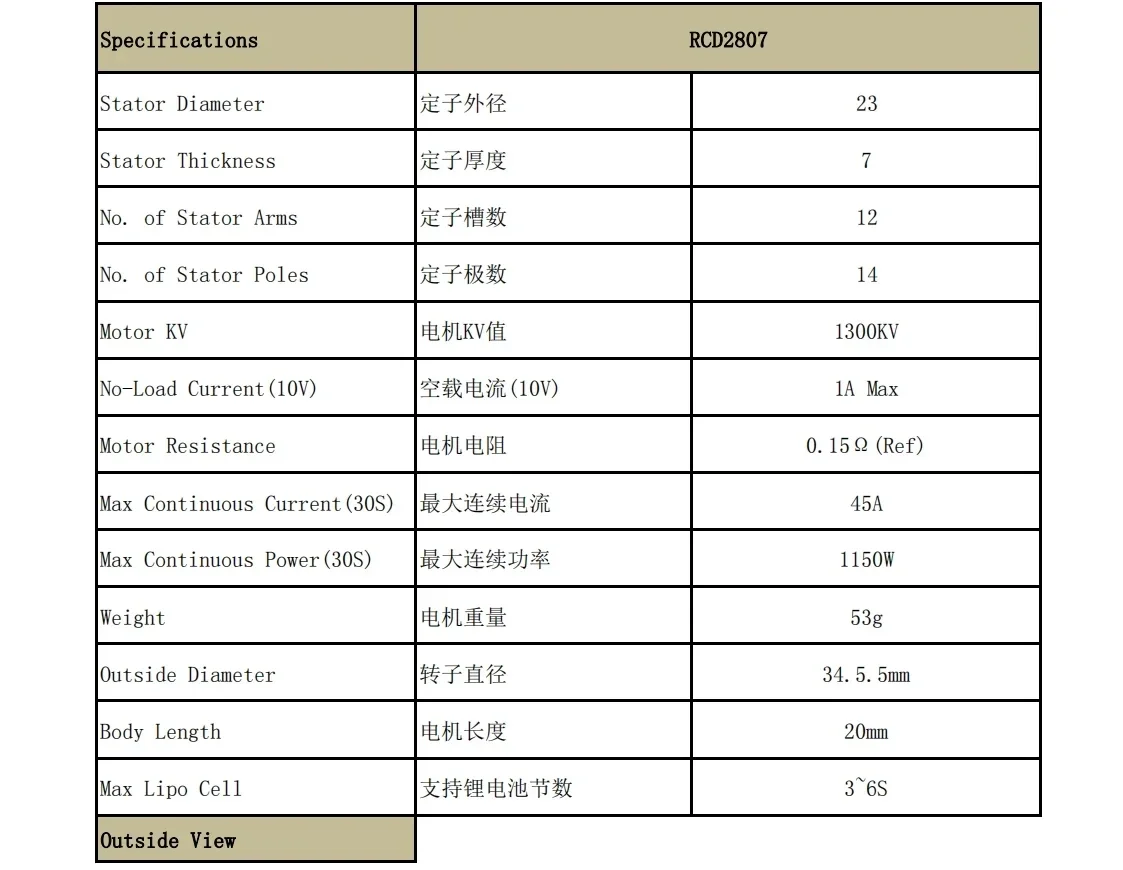

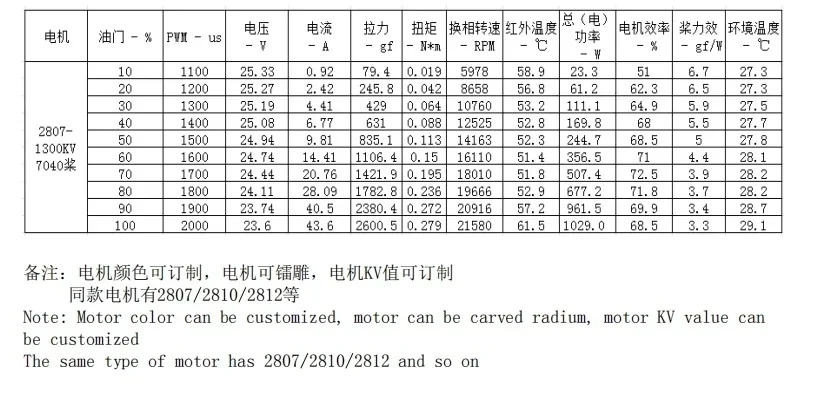

2. Propulsion System
-
Motors: 2806.5 / 2807 Brushless Motor
-
KV Rating: 1300KV (Ideal for 6S)
-
Propellers: 7040 3-Blade Long Range Props

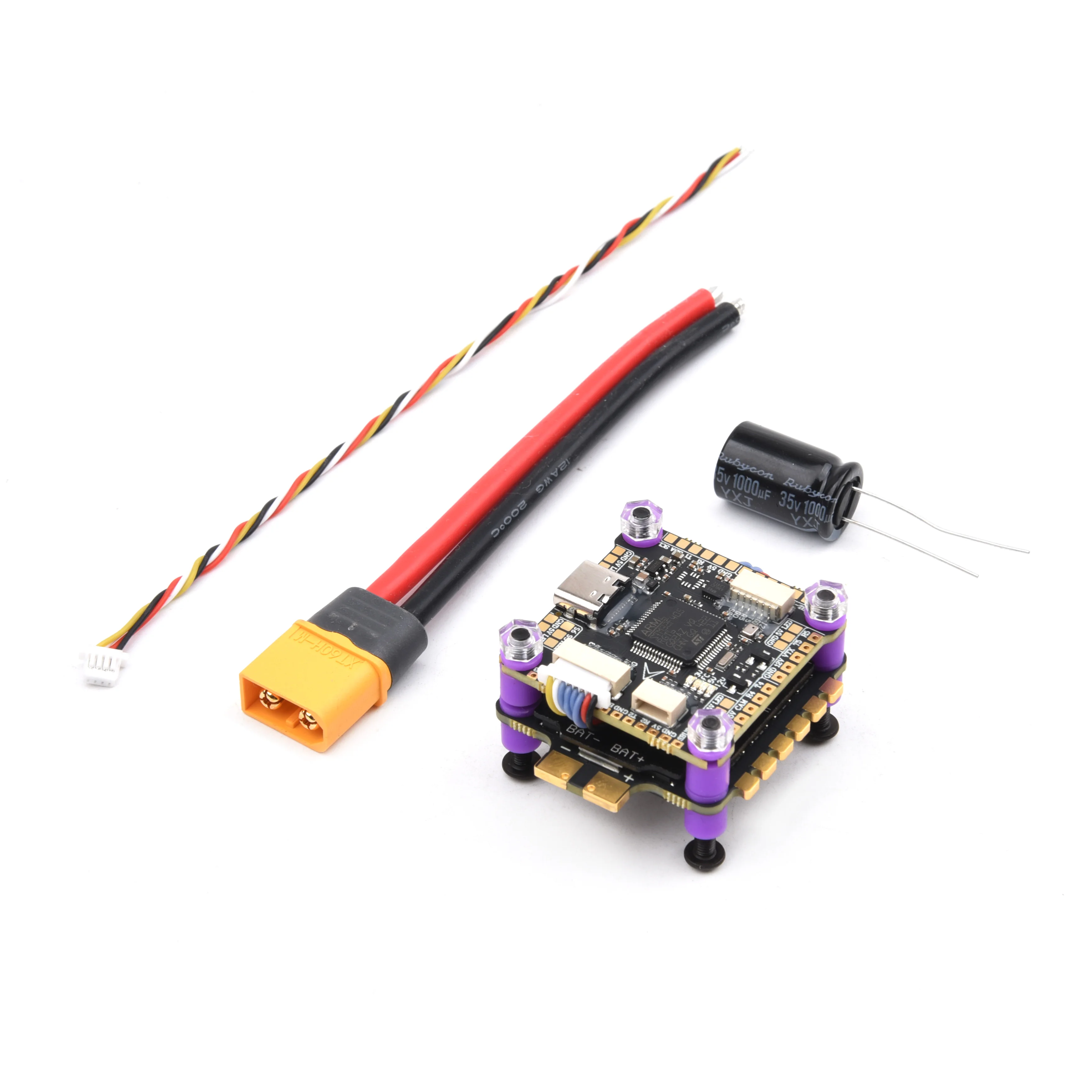

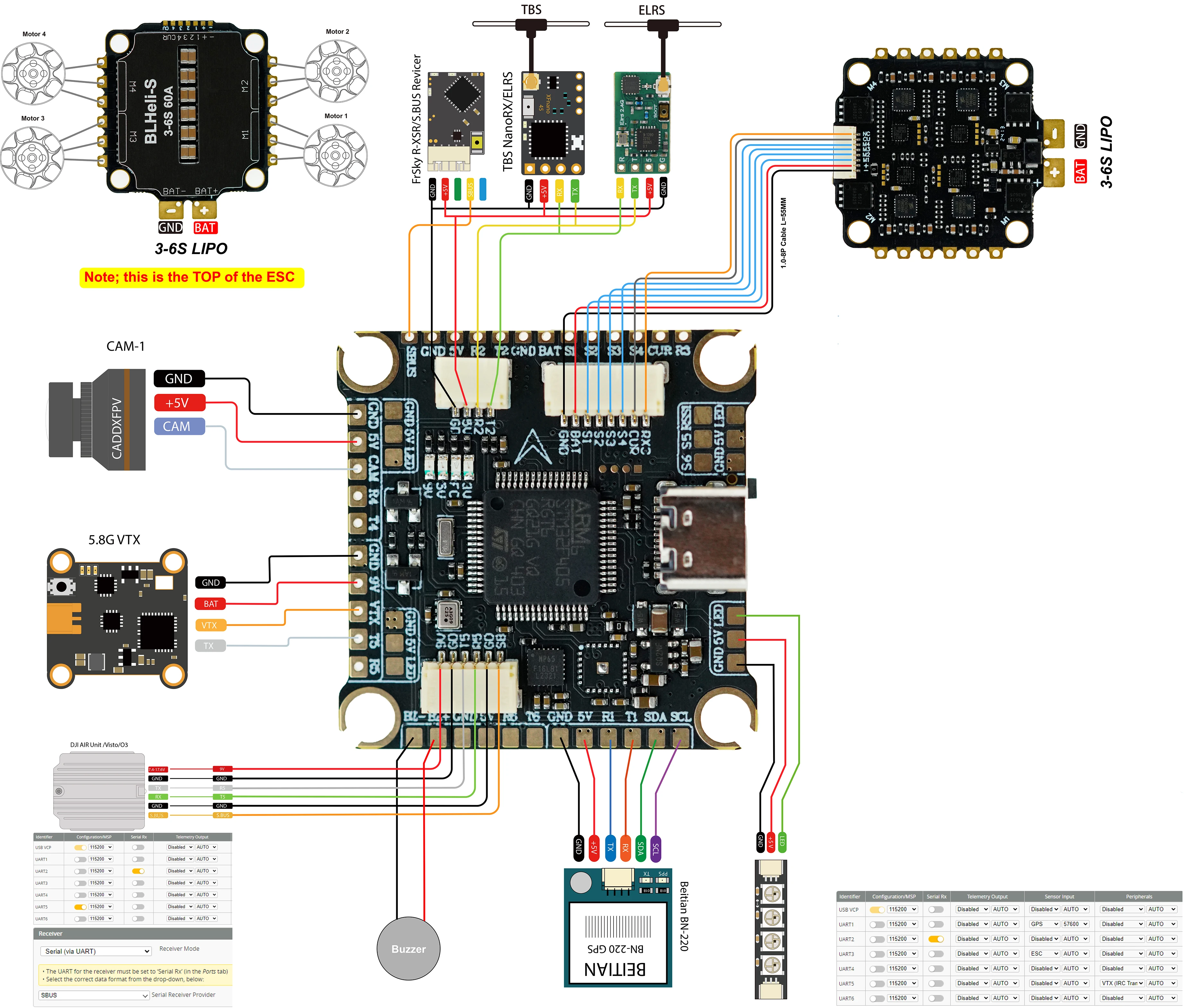

3. Flight Electronics
-
Flight Controller: F405 Standard
-
ESC: 60A 4-in-1 BLHeli-S
-
Input Voltage: 3-6S (12-26V)
-
ESC Features: EMI Shell, Anti-interference Capacitor, DShot600 Support
-
Mounting Pattern: 30.5mm x 30.5mm
Package Includes:
-
1x Mark4 7-Inch 295mm Carbon Fiber Frame Kit
-
1x F405 Flight Controller Board
-
1x 60A 3-6S 4-in-1 ESC
-
4x 2806.5 / 2807 1300KV Motors
-
2x Pairs 7040 3-Blade Propellers
-
1x Battery Strap
-
Note: Assembly required. Receiver and Camera/VTX not included.
Recommended Battery (Not Included):
-
For Cruising: 6S 1800mAh – 2200mAh LiPo
-
For Endurance: 6S 3000mAh – 4000mAh Li-Ion Pack
