The Ultimate Long-Range DIY Combo
Build your dream long-range cruiser or heavy-lift cinematic rig without the guesswork. The Mark4 V2 10-Inch Combo pairs the legendary stability of the Mark4 geometry with a massive power system designed for efficiency and payload capacity.

Why this kit?

• Massive 10-Inch Platform: The 427mm wheelbase and ultra-thick 7.5mm arms provide a rigid, vibration-free platform capable of carrying larger batteries (Li-Ion or LiPo) and professional cameras.

• Powerhouse Propulsion: Includes massive 3115 900KV Brushless Motors. These large stator motors provide incredible torque and efficiency when spinning the included Gemfan 1050 propellers, perfect for smooth 6S cruising.

• Reliable Electronics Stack: Features a modern F7 Flight Controller paired with a robust 60A 4-in-1 ESC. The stack includes EMI shielding and high-performance filtering to ensure your long-range flights are safe and reliable.

• Night & Day Visibility: (Optional) The 1800TVL Mini Camera offers class-leading resolution and Super WDR, giving you clear analog video feeds even in challenging lighting conditions.

Component Specifications

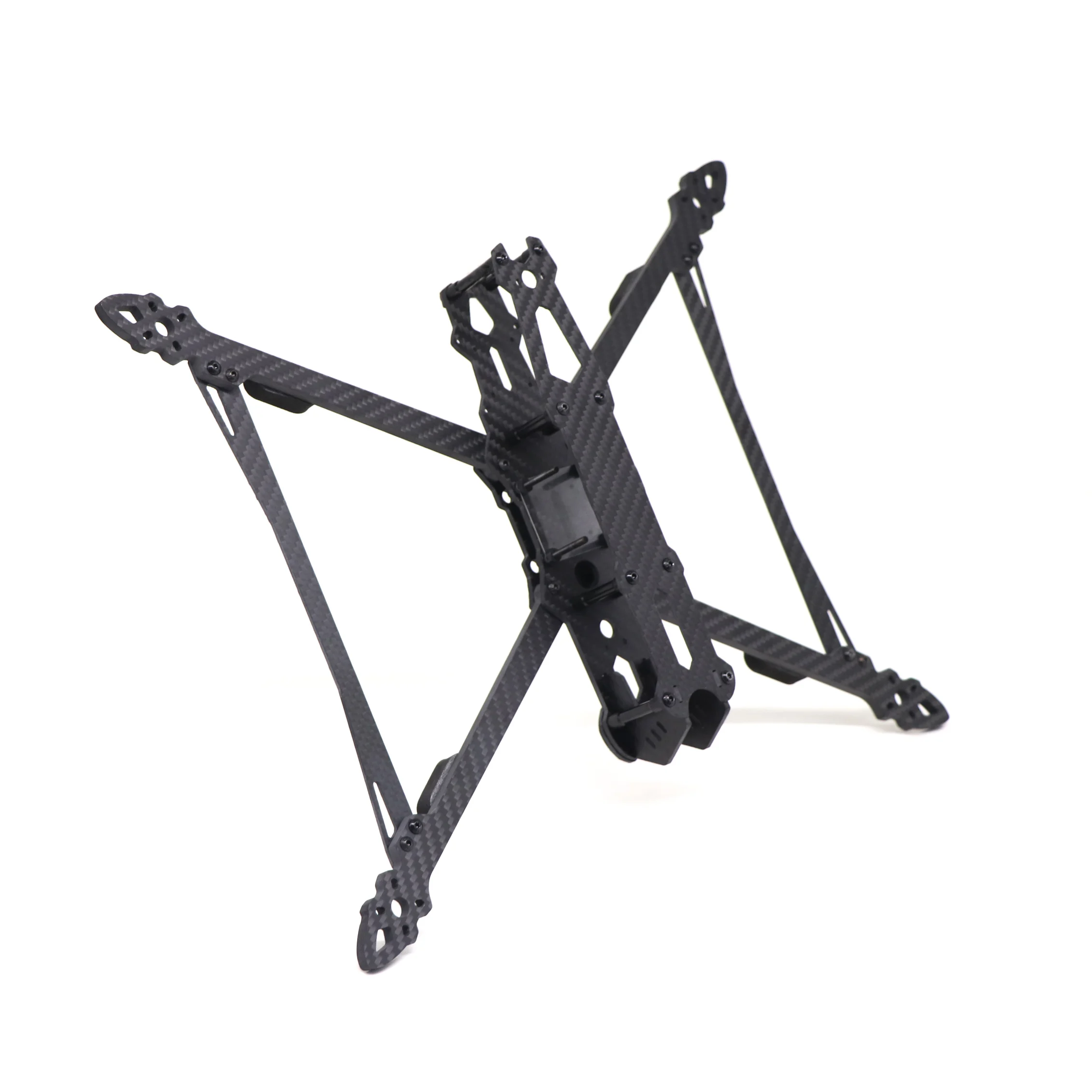

1. Frame: Mark4 V2 10-Inch

• Wheelbase: 427mm (True X Geometry)

• Arm Thickness: 7.5mm (Heavy Duty)

• Top Plate: 2.0mm

• Bottom Plate: 3.0mm

• Mid/Side Plates: 3.0mm / 2.5mm

• Inner Height: 35mm (Plenty of space for stacks and air units)

• Mounting Compatibility: 20x20mm & 30.5×30.5mm

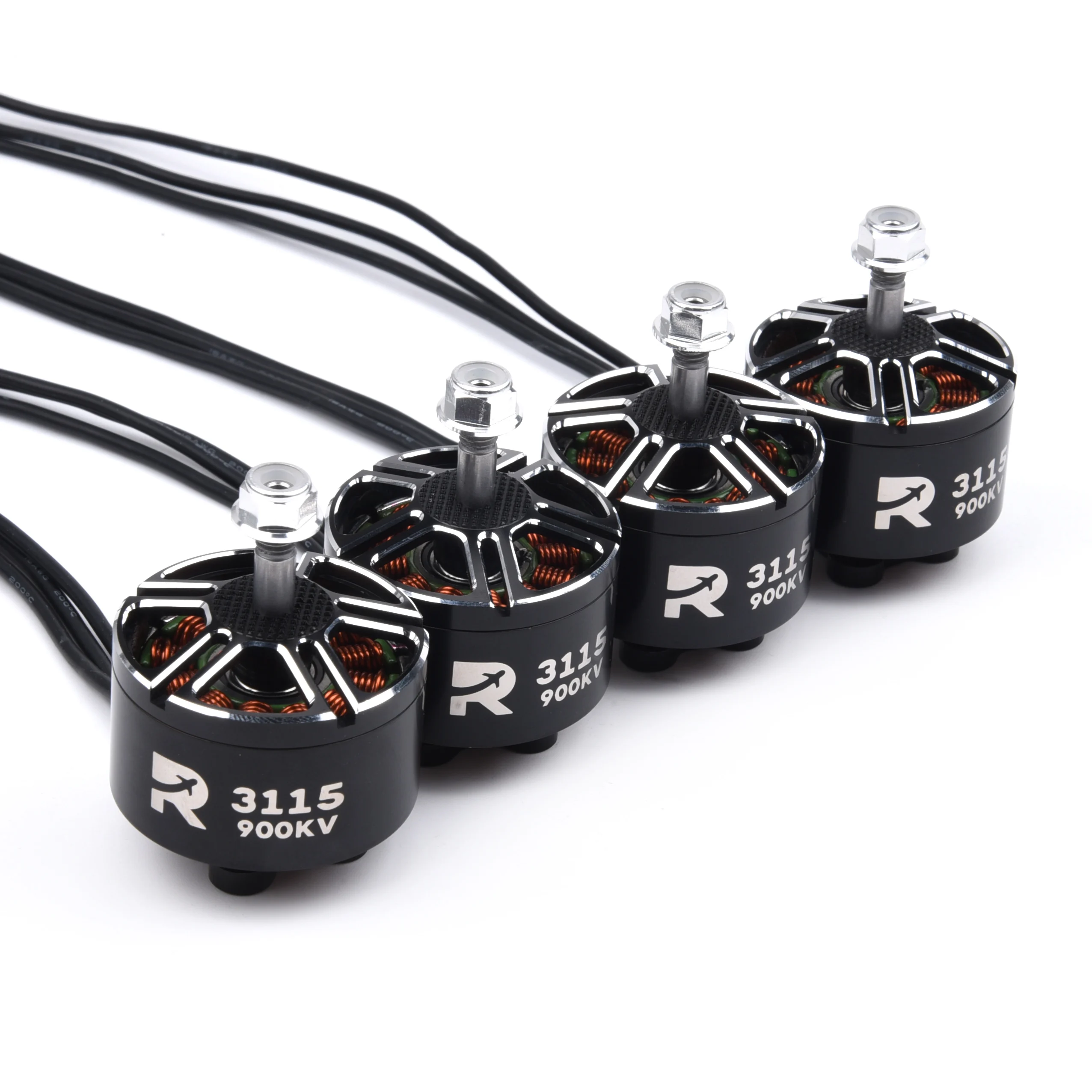

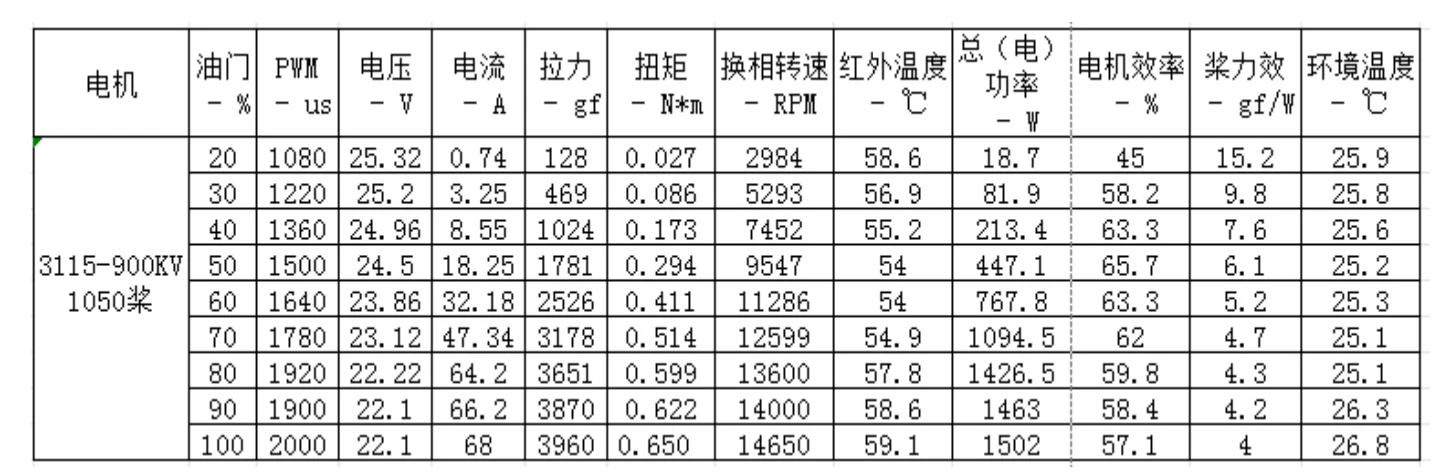

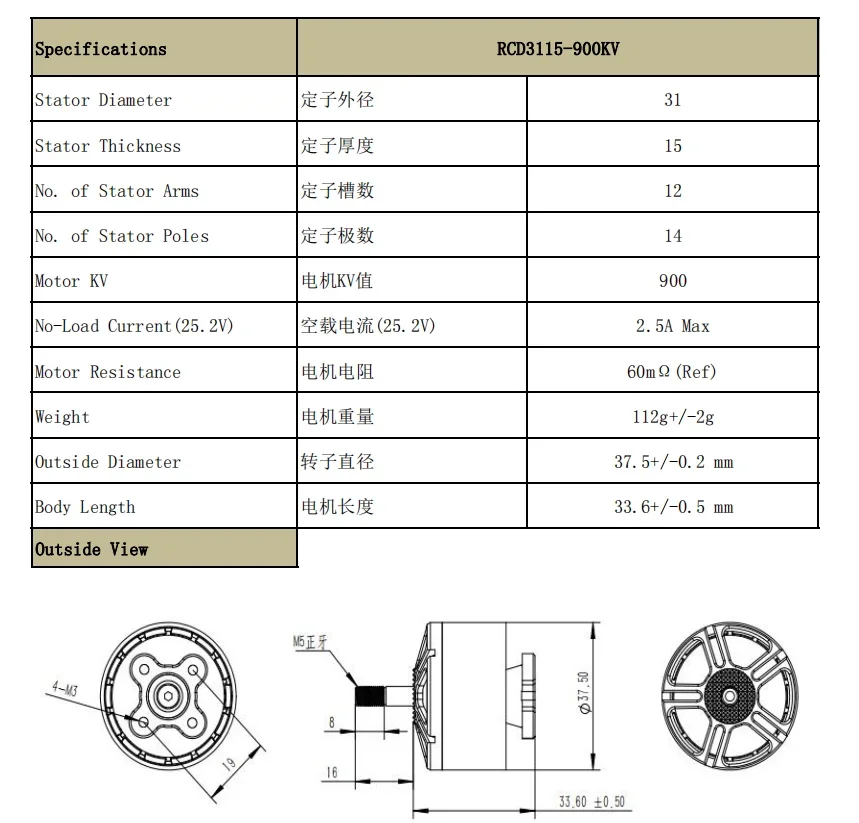

2. Motor: 3115 Brushless Long Range

• KV Rating: 900KV (Optimized for 6S)

• Stator Size: 3115

• Propeller Match: 10-Inch (Gemfan 1050 included)

• Mounting Pattern: 19x19mm

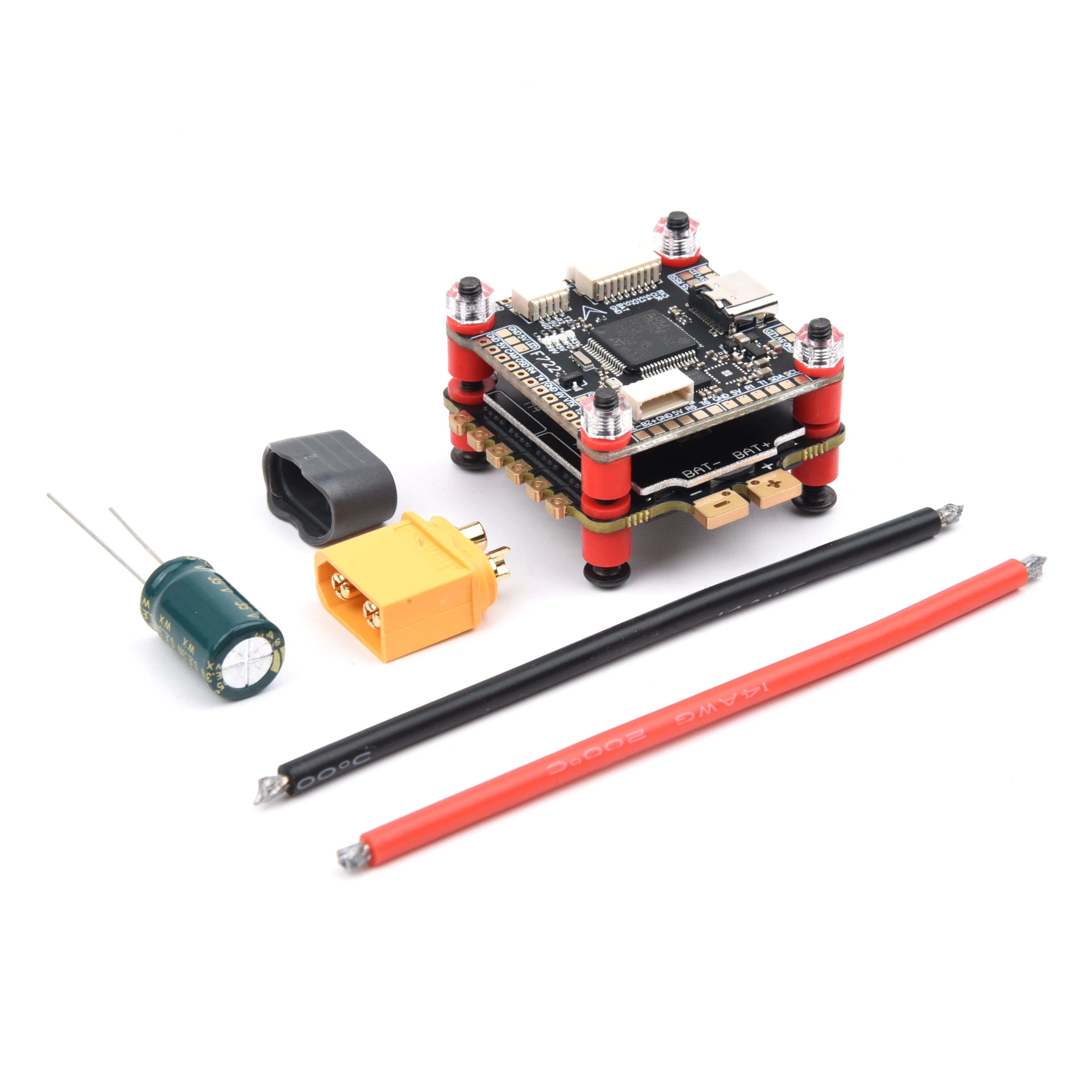

3. Flight Controller: F722 High Performance

• MCU: STM32F722RET6

• Gyro: High-performance MPU6500 or ICM42688

• OSD: Integrated AT7456E

• Barometer: Integrated (Essential for altitude hold/long range)

• Blackbox: 16M Flash

• Input: 3-6S LiPo

• BEC: 5V/2A, 9V/2A (Ready for DJI/Vista/Analog)

• Firmware Target: DAKEFPVF722

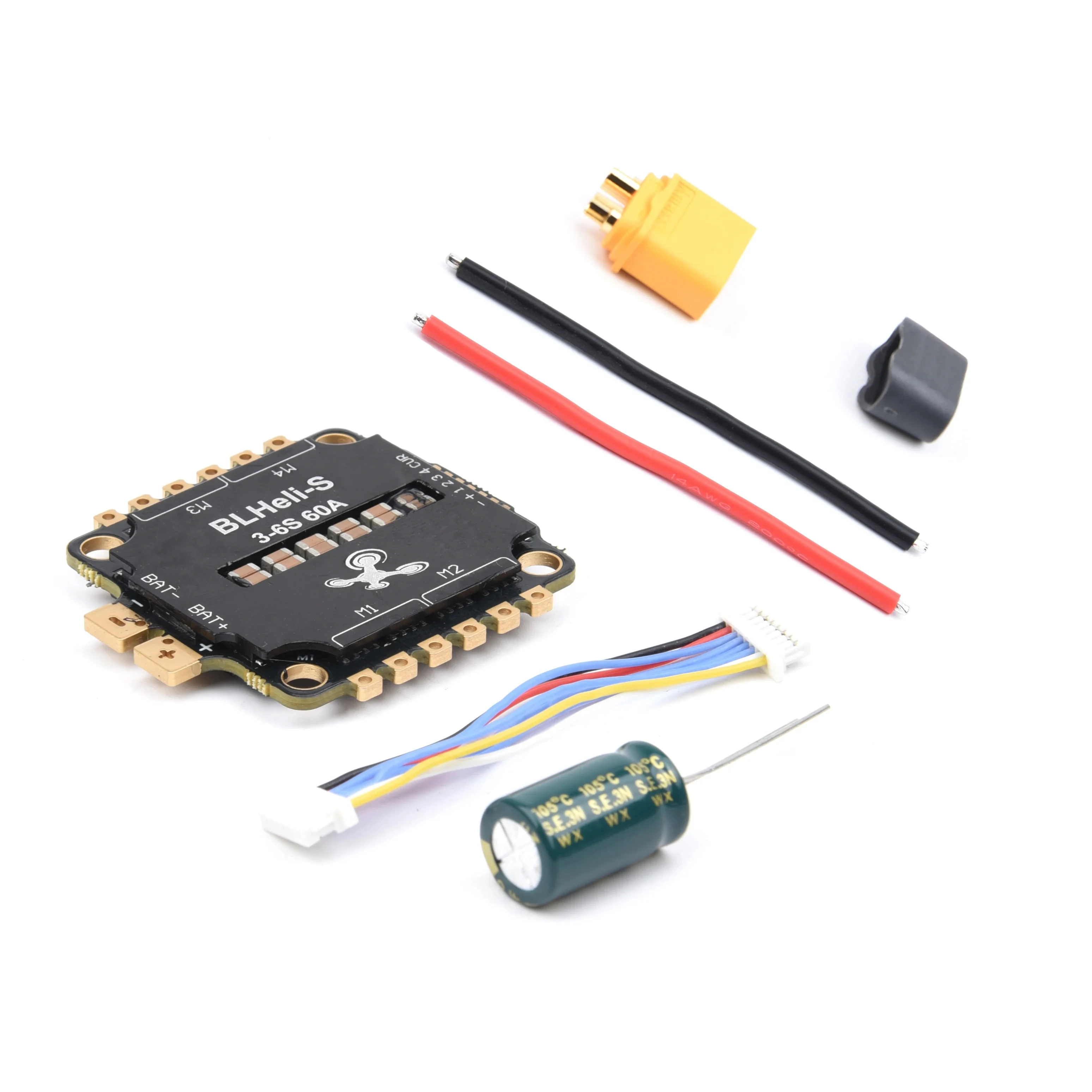

4. ESC: 60A BLHeli-S 4-in-1

• Current: 60A Continuous

• Input: 3-6S (12-26V)

• Protocol: DShot600/300/150

• Features: EMI Shielding Shell, Anti-interference Capacitor

• Mounting: 30.5×30.5mm (M4)

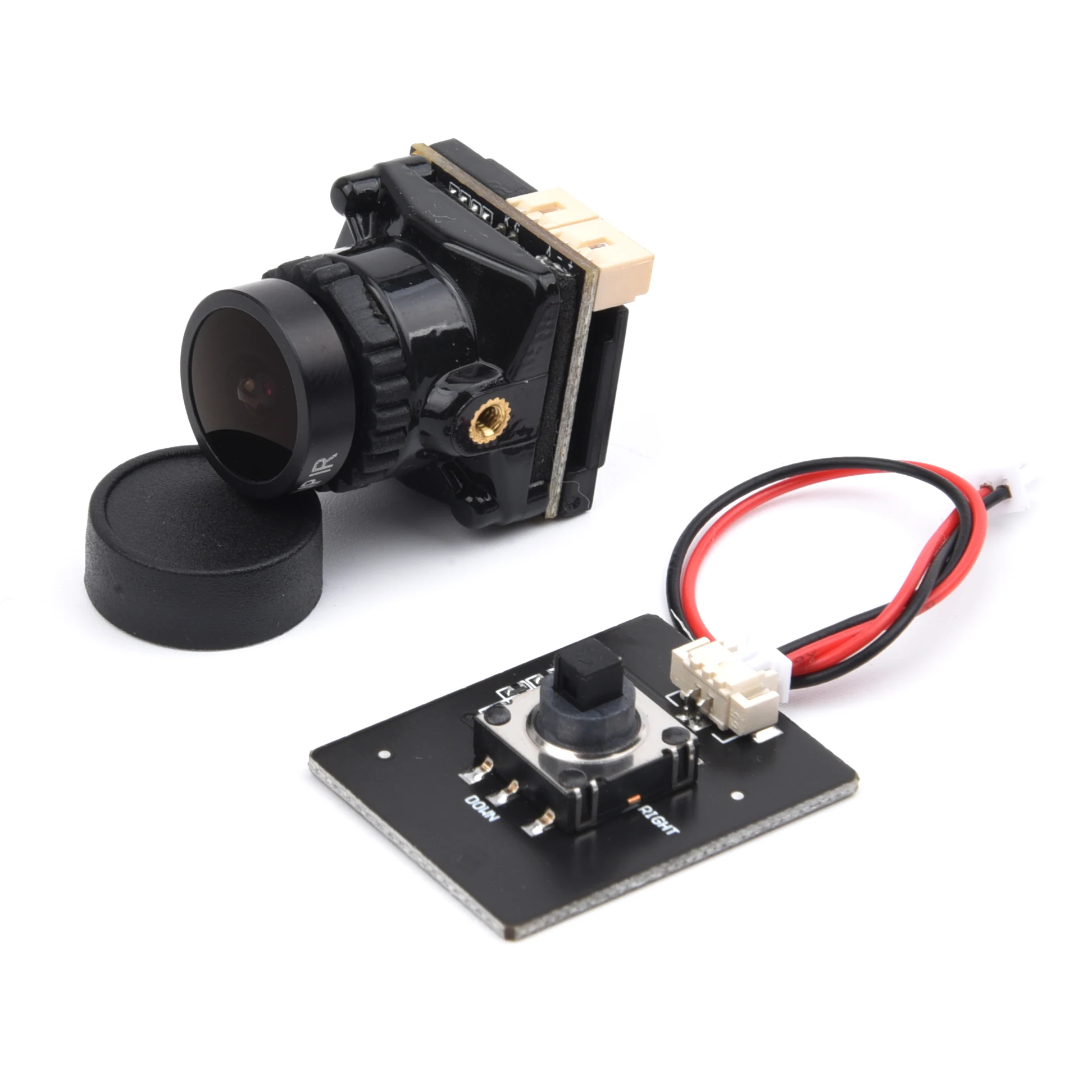

5. Camera (Included in “Set 2” Only)

• Resolution: 1800TVL

• Lens: 2.1mm (165° FOV)

• Sensor: 1/1.8″ Large Sensor

• Features: Super WDR, 3DNR Noise Reduction, Low Latency

• Dimensions: 19x19mm (Micro)

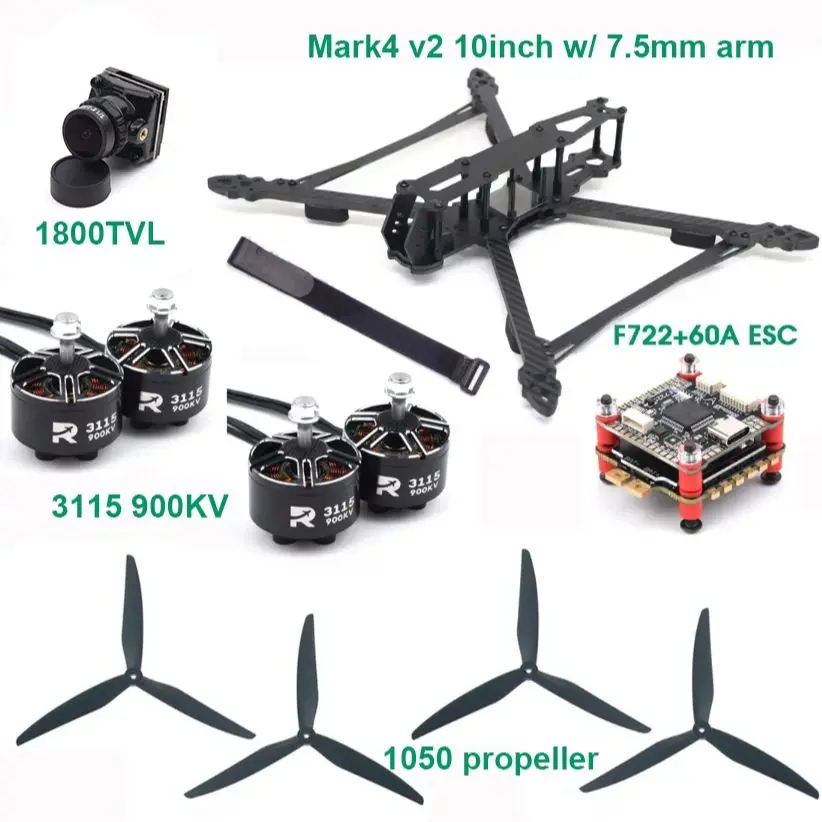

Package Options (Choose Your Set)

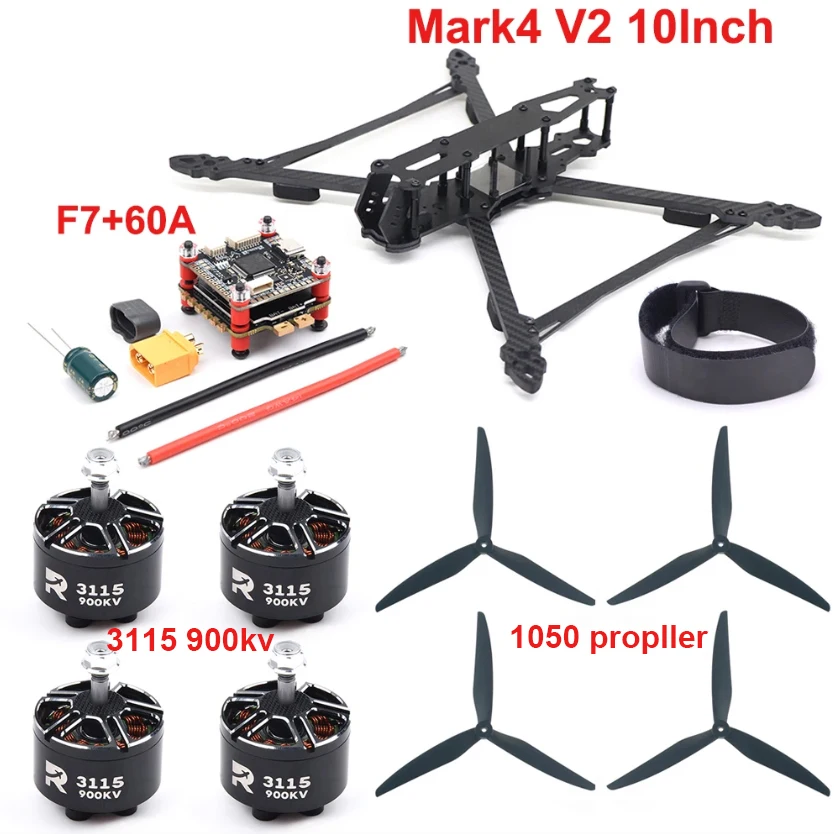

SET 1 (Power System Combo)

• 1x Mark4 V2 10-Inch Carbon Fiber Frame Kit

• 4x 3115 900KV Brushless Motors

• 1x F722 Flight Controller

• 1x 60A 4-in-1 ESC

• 2x Pairs Gemfan 1050 Propellers

• 1x Battery Strap

• Note: Camera and VTX not included.

SET 2 (Full FPV Combo)

• Everything in Set 1, PLUS:

• 1x 1800TVL Mini FPV Camera

Required to Complete (Not Included):

• Receiver (ELRS, TBS Crossfire, etc.)

• Video Transmitter (Analog VTX or Digital Unit)

• Batteries (Recommended 6S LiPo or Li-Ion Pack)

• Radio Transmitter & Goggles

F7 Flight Controller Specifications:

Main control chip: STM32F722RET6
MPU: MPU6500/ICM42688 (send at random)

Character overlay: AT7456E
Black box: integrated 16M Flash

Baro:DPS310/ SPL06-001/LQTP001HTA (send at random)

Serial port: 6 optional
Motor output: 6 channels optional
LED strip: support
Buzzer: support
Camera_Control：support
Input voltage: 3-6S Lipo
Power output: 5V/2A, 9V/2A
Weight: 6.0g
Size: 36x36mm, mounting hole 30.5mm
Firmware: DAKEFPVF722
